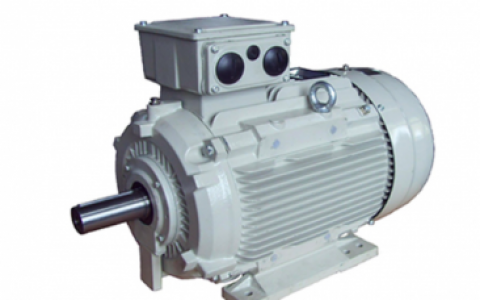

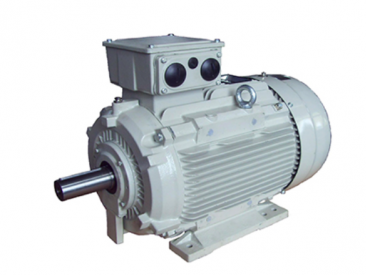

WUXI TECO Electric & Machinery Co., Ltd. can develop and produce TEV4 (AEEV4N/AEUV4N) motors that reach Level 2 energy efficiency (IE4/GB2). They are high-efficiency three-phase asynchronous motors that meet the needs of energy conservation and emission reduction.
Kind of Motors：Squirrel - Cage Induction Motors ( SCIM ).
Design Standards：IEC，GB
Voltages：380V
Frequency：50Hz.
Output Range：0.75kW~315kW
R.P.M.(Syn.)：3000~1000RPM.(2~6 Poles ).
Time Duty：Continuous.S1,S.F.: 1.0.
Frame Nos.：80M ~355L.
Protection Enclosure：Totally Enclosed ( IP 55 ) .
Cooling Method：Self External Fan,Surface Cooling (IC 411).
Mounting：
AEEV4N : Horizontal Foot Mounted B3 ( IM 1001).
AEUV4N : Horizontal Flange Mounted B5 ( IM 3001)
AEEV4N : Horizontal Foot And Flange Mounted B35 ( IM 2001).
AEUV4N : Vertical Flange Mounted,Shaft Down V1 ( IM 3011)
Environment Conditions:
Place : Shadow，Non-Hazardous. Ambient Temperature : -15~ 40
Relative Humidity : Less Than 90%RH (Non-Condensation)
Altitude : Less Than 1,000 Meters .
Power Source Conditions: Voltage :土10%, Frequency : +5%，and 10% Max. of Combined Voltageand Frequency. But Frequency Variation Does Not Exceed 5% .
Method of Starting: Full Voltage Direct On Line or Y -A Starting .
Drive Method: Belt Service,However, 2 Pole 45 kW and Up ,4、6 Pole F# 280 andAbove Coupling Service is the Way .
Direction of Rotation: CW According to IEC Definition, Suitable For Bi - Directional Operation .
